THE STATISTICAL UNCERTAINTY ASSOCIATED WITH
HISTOGRAMS IN THE EARTH SCIENCES.
(JGR, 2005, Vol 110, B02211)
Pieter Vermeesch
Department of Geological and Environmental Sciences, Stanford University
Braun Hall, room 320-305, 450 Serra Mall
Stanford, CA 94305-2115, United States
pvermees@pangea.stanford.edu
Abstract
Two types of quantitative information can be distinguished in the
Earth Sciences: categorical data (e.g., mineral type, fossil name,
...) and continuous data (e.g., apparent age, strike, dip, ...).
Many branches of the Earth Sciences study populations of such data, by
collecting a random sample and binning it into a histogram.
Histograms of categorical data follow multinomial distributions. All
possible outcomes of a multinomial distribution with M categories must
plot on a (M-1) simplex DM-1, because they are subject to a
constant-sum constraint. Confidence regions for such multinomial
distributions can be computed using Bayesian statistics. The
conjugate prior/posterior to the multinomial distribution is the
Dirichlet distribution. A 100(1-a)% confidence interval for
the unknown multinomial population given an observed sample histogram
is a polygon on DM-1 containing 100(1-a)% of its
Dirichlet posterior. The projection of this polygon onto the sides of
the simplex yields M confidence intervals for the M bin counts. These
confidence intervals are "simultaneous" in the sense that they form
a band completely containing the 100(1-a)% most likely
multinomial populations. As opposed to categorical variables,
adjacent bins of histograms containing continuous variables are not
mutually independent. If this "smoothness" of the unknown
population is not taken into account, the Bayesian confidence bands
described above will be overly conservative. This problem can be
solved by introducing an ad hoc prior of "smoothing weights"
w=e-sr, where r is the second derivative of the histogram and s
is a "smoothing parameter".
Consider a jar filled with infinitely many balls of M different
colors. Suppose that we want to estimate the proportions of the
colors in the jar by drawing a sample of N balls from it and counting
the number of times each of the colors occurs in this sample: n
= {n1,n2,...nM | åj=1Mnj = N}. Then our
best guess (the so-called "maximum likelihood estimate") for the M
proportions is p = {p1=n1/N, p2=n2/N, ...,
pM=nM/N | åj=1Mpj = 1}. Now we ask ourselves
the question: how confident are we about p? In other words: are
there any other sets of proportions p¢ =
{p¢1, p¢2, ..., p¢M |
åj=1Mp¢j = 1} that could have yielded the
observations n with reasonable probability?
This simple statistical problem frequently occurs in geological
applications. Of course, geologists are not counting "balls", but
things like sediment grains or faults. Neither are they interested in
"color" (although sometimes they do), but in mineral type, age or
angle. In such studies, the information that is interpreted is not
represented by the measurements themselves, but by estimates of their
probability distribution, which are most often represented by some
sort of histogram. When reporting analytical data, it is considered
good scientific practice to provide an estimate of the associated
statistical uncertainties. This paper presents a method to extend this
practice to the kind of point-counting studies described above. In
Section , we will introduce a number of examples
of histograms in the Earth Sciences, as a further motivation of the
present study. We will distinguish between two types of histograms. A
first type is used to represent categorical variables, such as color
or mineral type. Here, we will also discuss the ternary diagram,
which is a different way of visualizing histograms with only three
bins, that is quite popular in sedimentary petrography. A second type
of histogram which we will discuss contains continuous, or time series
data. The prime examples of this kind of histograms are detrital
thermochronological grain-age histograms, which tally the number of
times a range of apparent grain-ages occur in a detrital sample.
However, continous histograms need not necessarily contain age-data
and we will see an alternative example for which they do not. The
fundamental difference between the aforementioned two types of
histograms is that the bins of categorical histograms are mutually
independent, while adjacent bins of continous histograms are
correlated to some degree. As a consequence, the method for
constructing their respective confidence bands will be somewhat
different.
After Section has set the stage, we can begin
developing the statistics of the actual method itself. The
simultaneous confidence bands discussed in this paper will be derived
according to the so-called "Bayesian" pradigm, as opposed to the
more traditional "frequentist" paradigm. In Section
, these terms will be explained using a simple
binomial example, which is a degenerate case of the problem this paper
addresses. So by the end of Section , we should
be in a good shape to compute simultaneous confidence bands for
multinomial proportions, which is the subject of Section
. Section will explain
why frequentist confidence intervals do not easily generalize to
histograms with more than three bins. As an alternative, a Bayesian
method to construct confidence bands for categorical histograms will
be developed in Section . Finally, Section
gives an ad hoc way to modify the method
of the preceding section so that it takes into account the
autocorrelation of continous histograms. Section
revisits the examples of Section
and answers the questions that were raised in
it. Section wraps up the paper with some
summarizing conclusions.
2 Setting the stage: Examples of histograms in the Earth Sciences
The framework composition of sandstones
contains useful information about their provenance, transport history
and post-depositional evolution, and is used to reconstruct the
plate-tectonic setting of sedimentary basins (e.g. Dickinson et
al., 1983; Dickinson, 1985). Framework compositions are measured
by petrographic point-counting of thin sections. The results are often
plotted on ternary diagrams, the most popular of which is the QFL
diagram, which depicts quartz, feldspar, and lithic fragments (Figure
1). As discussed in Section 1, one of the questions this paper will
answer is how to estimate the statistical uncertainties for such
point-counting measurements. Van der Plas and Tobi (1965) discuss the
construction of confidence intervals for individual point-counting
proportions, for example the percentage of quartz in a thin section.
However, we are rarely interested in just a single proportion. This
paper develops a Bayesian method to compute simultaneous
confidence bands for categorical histograms. This method will allow
an estimation of the likelihood that a specific sample falls into one
particular field of tectonic affinity on the QFL plot (Figure 1). To avoid confusion, we should remark that
while this paper will discuss the statistical uncertainties of
individual point-counting measurements (one sample), it will
not talk about the uncertainties on populations of several
measurements. Whereas the former follows a multinomial distribution,
the latter can take many forms, such as the logistic normal
distribution. Many interesting issues are associated with ternary
populations, but the reader is referred to Weltje (2002) for a

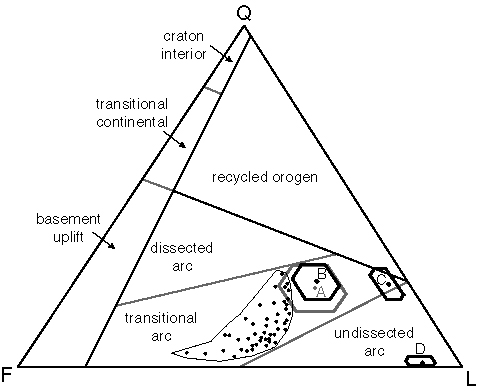

discussion of them. Figure 1 shows a
petrographic QFL diagram with tectonic discrimination fields by
Dickinson et al. (1983). The "cloud" of points and the
associated hand-drawn contour mark a detrital population. For the
discussion of how to compute this contour in a statistically more
rigorous way, we again refer to Weltje (2002). The present paper will
address the following questions: (1) How different are samples A and
B? (2) Is it possible that samples A and B belong to the contoured
population? (3) How certain are we that sample C falls into the
"transitional arc" field? Could it be that it actually belongs to one
of the neighboring fields? (4) How does the number of grains affect
the precision of our point-counting results? Since the ternary
diagram plots ratios, we lose information on the actual number of
grains counted. For example, sample A represents 200 counts, while
sample B represents 400 and there is no way to tell this from Figure
1.
Figure 1: Petrographic QFL diagram with tectonic discrimination fields
by Dickinson et al. (1983). All samples except A represent 400
synthetic point-counts. Sample A is based on only 200 counts.
The ternary diagram is very popular in
sedimentary petrography, but when more than three components need to
be plotted, we must use another device: the histogram. This is the
case in heavy mineral analysis (e.g. Faupl et al., 2002), and
in clast-counting, which is a scaled-up version of petrographic

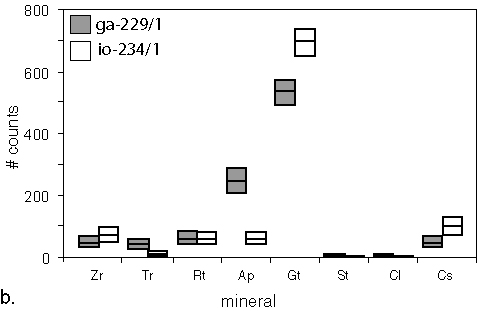

point-counting (e.g. Yue et al., 2001). Figure 2 shows two heavy mineral analyses by Faupl et
al. (2002). For each sample, 200 grains were counted. The basic
questions that arise when doing this sort of analysis are the same as
for the ternary example: (1) What is the precision of the estimated
mineral fractions? (2) How would the precision be affected by
increasing N, the total number of grains counted? (3) Are samples
ga-229/1 and io-234/1 compatible with each other? Regarding the last
question, it is useful to remark that when a very large number of
grains are counted, it is almost certain that a statistically
significant difference between two samples of the same rock will be
found. No two samples collected on the field have an exactly
identical composition. As the number of counts increases, our power to
resolve even the smallest differences will increase. It is when this
point is reached that the petrographic composition of the sample has
been properly characterized and we can begin to study populations of
samples. As a comforting note, we can already tell here that the
guidelines of Van der Plas and Tobi (1965) fulfill this requirement
most of the time.

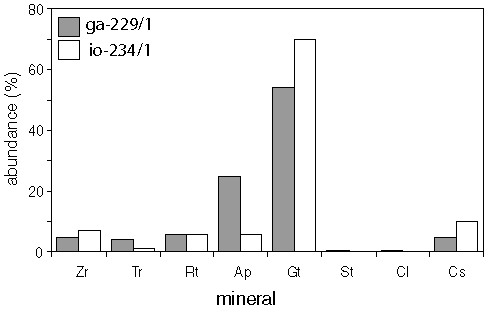

Figure 2:
Heavy mineral analysis of two samples from the Peloponnese (Greece) by
Faupl et al. (2002). Zr - zircon, Tr - Tourmaline, Rt - Rutile,
Ap - Apatite, Gt - Garnet, St - Staurolite, Cl - Chloritoid, Cs -
Chrome spinel.
Alternatively, histograms can also be
used for continuous data. Detrital thermochronology tries to find the
provenance area of sedimentary rocks and unravel its geologic history,
by dating individual mineral grains in the sample (e.g. Avigad et

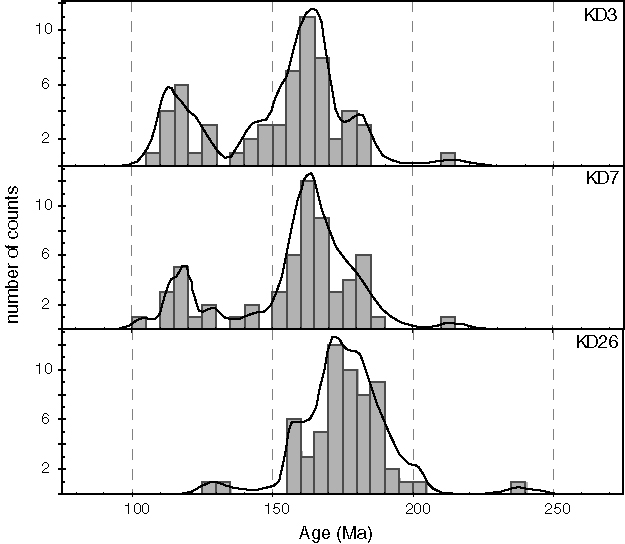

al., 2003; DeGraaff-Surpless et al., 2003). Figure 3 shows three detrital zircon U-Pb grain-age
distributions from the Methow Basin, in the southern Canadian
cordillera (DeGraaff-Surpless et al., 2003). For each sample,
Figure 3 not only shows the grain-age
histogram, but also the continous "kernel density estimate". Unlike
categorical point-counting data, the grain-ages that are used in
detrital thermochronology can have significant analytical
uncertainties. This is a second source of error (the first one being
counting statistics) that is not taken into account by the histogram.
The kernel density estimator is an alternative estimator of
probability density that does take into account measurement
uncertainties. However, it is not easy to estimate the effect of
counting statistics on kernel density estimates. In this paper, we
will ignore measurement uncertainties, and just focus on the effect of
counting statistics. We will later see that in order to get a better
idea of the importance of both factors, it is good practice to use
histograms in conjuction with kernel density estimates. The reader is
referred to Silverman (1986) and Sircombe and Hazelton (2004) for a
discussion of the kernel density estimator and some issues that are
associated with it. The questions this paper will answer concerning
detrital grain-age histograms are: (1) What is the uncertainty on the
bin counts? (2) How certain are we that empty bins actually correspond

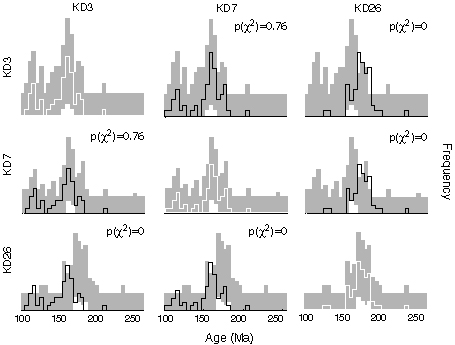

to missing age fractions? (3) Are grain-age histograms such as the
three shown in Figure 3 compatible with or
significantly different from each other?
It is easy to see that detrital grain-age
histograms represent time series. However, continuous histograms are

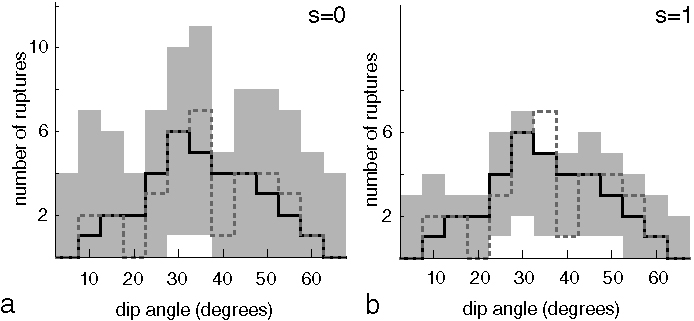

not restricted to the time dimension. Figure 4 shows a histogram of dip estimates for 33
reverse faults reported by Collettini and Sibson (2001). Although the
units of this histogram are not time, but angle (in degrees), it still
represents a continous function, or "time series". One of the
observations made by Collettini and Sibson about this histogram is
that it is bimodal, with one peak at 30o and a second at
50o. The simultaneous Bayesian confidence intervals
described in this paper will tell us if this bimodality is
statistically significant on for example a 95% confidence level.
Whereas categorical data follow multinomial distributions, where the
bins are mutually independent apart from the fact that they must sum
to a fixed number (the sample size), time series are auto-correlated
to some degree, and this must be taken into account when computing
confidence intervals. This paper will assess the importance of this
problem and propose a Bayesian solution to it in the form of an ad
hoc smoothing prior.
Figure 3: Three U-Pb grain-age histograms and corresponding kernel density
estimates for samples of detrital zircon from the Cretaceous Methow
basin (DeGraaff-Surpless et al., 2003).

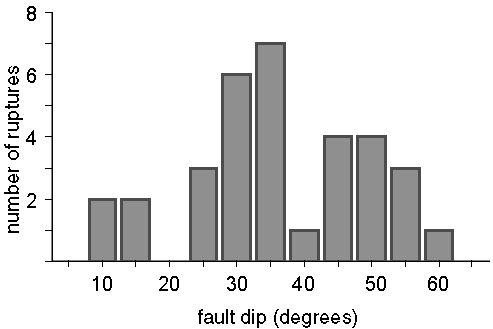

Figure 4: A histogram of 33 reverse fault dip estimates. Although the measurements
are in degrees, the histogram can still be considered a "time
series", because it is expected to fit a more or less smooth,
autocorrelated function.
In this section, we will introduce some fundamental statistical
principles and nomenclature wich will be needed in the next section.
Surprisingly enough, there is no general agreement in the statistics
community on the definition of a confidence interval. There are two
points of view: the frequentist and the Bayesian point of view. To
explain the difference between these two paradigms, we will consider a
degenerate case of the problem at hand. Revisiting the metaphor from
Section 1, we now consider a jar with balls of
only two colors, say black and white. Drawing N balls from this jar
as before, we count the number n of black balls. For this binomial
experiment, the maximum likelihood estimate for the proportion of
black balls in the jar is p = n/N. How do we construct a
100(1-a)% confidence interval for this estimate? An
approximate solution to this problem is given by Van der Plas and Tobi
(1965), but both the frequentist and the Bayesian methods which will
be discussed now are exact.
According to the "frequentist", a
confidence interval for a parameter q
"consists precisely of all those values of q0 for which the null hypothesis
H0: q=q0 is accepted" (Rice, 1995).
For example, we saw earlier that histograms represent the outcome of a
multinomial experiment. The probability distribution of each of the
bin counts of a histogram is the marginal of a multinomial
distribution, which is the binomial distribution. Consider a bin
containing n out of N measurements. The maximum likelihood estimate
for the binomial parameter p then is pmle = n/N. Now
consider the null hypothesis H0: p=po versus the
alternative Ha: p ¹
po. H0 is accepted on a 100(1-a)% confidence level iff:
N å
i=n
C(N,i) poi poN-i <
a
2
<
n å
i=0
C(N,i) poi poN-i
(1)
Now, according to the definition, a two-sided confidence interval
contains all those values for po which pass the test given by
Equation 1. The solution can be found by numerical
iteration and/or interpolation (Clopper and Pearson, 1934). An
example for N=50, n=20 and a=0.1 is given in
Figure 5.

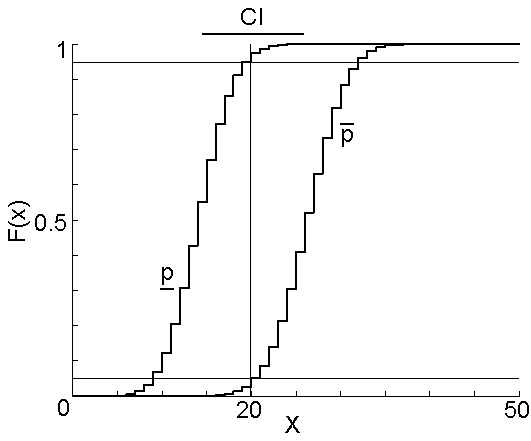

Figure 5: 90% frequentist confidence bounds on p for
n=20,N=50. The step-functions represent the cumulative binomial
distribution with parameters (N,p) and (N,`p), respectively. p is the largest
value for p for which 20 out of 50 counts would occur more than 5%
of the time. Likewise, `p is the lowest
value for p that would yield the observed ratio of 20/50 with more
than 5% probability.
It can be shown (e.g. Blyth, 1986), that Equation 1
is mathematically equivalent to:
p = B(1-
a
2
,n+1,N-n) < p < B(
a
2
,n,N-n+1) =
-
p
(2)
Where B(a,a,b) is the 100a percentile of the b
distribution with parameters a and b:
b(a,b)=
G(a+b)
G(a)G(b)
pa-1(1-p)b-1
(3)
where G(x) is the gamma function, which can be considered the
continuous version of the factorial operator. For example, if x is an
integer, then G(x+1)=x!. Likewise, the b distribution can
be thought of as being a continuous version of the binomial
distribution. Notice that for n=0 and n=N, Equation 2
breaks down. Instead, the following expressions should be used:
For a "Bayesian", a 100(1 - a)% confidence (or
credibility) interval for a parameter q given some data
x is an interval for q that covers 100(1 - a)% of its
posterior distribution P(q| x), where the latter
is given by:
P(q| x) µ P(x|q)P(q)
(6)
with P(q) a prior distribution on q and P(
x|q) the likelihood function of the data given the
parameter. The subjectivity of the Bayesian approach lies in the
choice of the prior distribution. A uniform distribution ("flat
prior") is often taken if no prior information exists as to what the
value of q should be. However, whether or not this is a good
non-informative prior has been challenged. The uniform
distribution does not yield posterior distributions that are invariant
under reparameterization (Jeffreys, 1946). We will soon see an
example of an alternative prior distribution that does have this
invariance.
We now return to the problem of independent credibility intervals for
multinomial proportions. Again, we consider a bin with n counts out of
N and want to construct a 100(1-a)% credibility interval for
p=n/N. The likelihood function is binomial: P(n|p) = \binomNnpn pN-n. If we take a flat prior for P(p), then the posterior is
a b(n+1,N-n+1) distribution (Bayes, 1763):
P(q < p < r | n) =
G(N+2)
G(n+1)G(N-n+1)
ó õ
r
q
pn(1-p)N-ndp
(7)
Therefore:
p = B(1-
a
2
,n+1,N-n+1) < p < B(
a
2
,n+1,N-n+1) =
-
p
(8)
Notice the similarities between Equations 2 and
8. However, as opposed to the frequentist Equation
2, the Bayesian Equation 7 does not
require a special case for n=0 and n=N. The b distribution is an
example of a conjugate prior. This means that if we take a
b-distributed prior, and a binomial sampling distribution, then
the posterior will also have a b distribution. The uniform
distribution is a special case of the b distribution for a=b=1
(i.e. b(1,1)). b([1/2],[1/2]) is a
noninformative prior (Jeffreys' prior) for the binomial
distribution that is invariant under reparameterization (e.g. Gill,
2002, p.124). The posterior distribution then becomes
b(n+[1/2],N-n+[1/2]). Taking the same example
as for Section 3.1 (i.e. n=20, N=50,
a=0.1), Figure 6 shows a two-sided Bayesian
credibility interval for p.
Figure 6: 90% Bayesian credibility bounds on p for n=20,N=50. The
curve represents the cumulative b distribution function with
parameters n+1 and N-n+1, using a flat prior. The credibility interval
[ p < p < [`p] ] is a (symmetric) interval for p that
covers 90% of the area under this posterior distribution.
4 Simultaneous confidence intervals for multinomial proportions
As was shown in Section 3, it is relatively easy
to construct independent confidence intervals for each of the M
bin counts nm (1 £ m £ M) that make up a histogram, both
under the frequentist and the Bayesian paradigm. However, we need to
be more ambitious than that. In order to be able to compare two
samples and test if they are significantly different, we would like to
construct simultaneous confidence intervals for all of the M
histogram bins. Like we did for the binomial case in the previous
section, we will again discuss first the frequentist and then the
Bayesian solution to this problem. It will soon become clear why the
Bayesian method is more appropriate for our purpose.
As discussed before, histograms are representations of multinomial
distributions. Suppose we have N numbers ("balls"), distributed
over M bins ("colors"), corresponding to M multinomial proportions.
The bin counts (n1,...,nM) must fulfill the condition
åm=1Mnm=N. Therefore, all possible multinomial
distributions must fall on an M-simplex DM-1. An

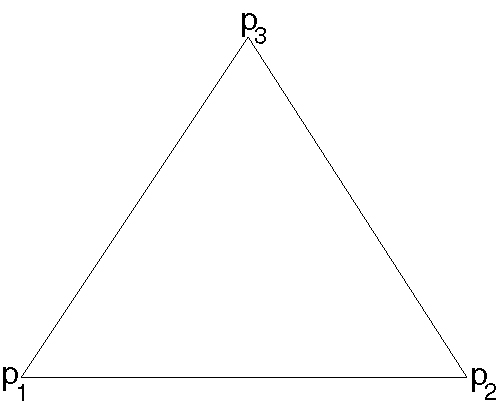

example of a 3-simplex (which just is another word for "ternary
diagram") is shown on Figure 9. Consider a histogram
with M bins, representing a sample of N numbers:
XN={x1,...,xN}. This histogram corresponds to one point on
DM-1, the maximum likelihood estimate (mle) of the bin
counts. Under the frequentist paradigm, outlined in Section
3.1, a 100(1-a)% confidence region on
DM-1 consists of all those probability vectors p =
(p1,..., pM | åm=1M pm=1) which are capable of yielding
observations as extreme as n = (n1, ..., nM | åm=1Mnm = N) with at least 100(1-a)% probability.
In order to find this region, a grid of possible pkl =
(p1kl,... ,pMkl | åm=1Mpmkl = 1) is evaluated.
For each of these "test-populations" (for example the black dot on
Figure 7) a large number of synthetic "samples"
(the white dots on Figure 7) of N numbers were
generated, following an algorithm given in Appendix A. Next, we
construct the 100a% convex hull of these synthetic
samples. This is a polygon containing 100a% (the so-called
"hull percentile") of them. We test to see if pmle (the
black square on Figure 8) falls within the convex
hull of pkl. If this is not the case, then pkl
falls outside the 100a% confidence region of
pmle. This procedure is repeated for the entire grid (k=1...K ,

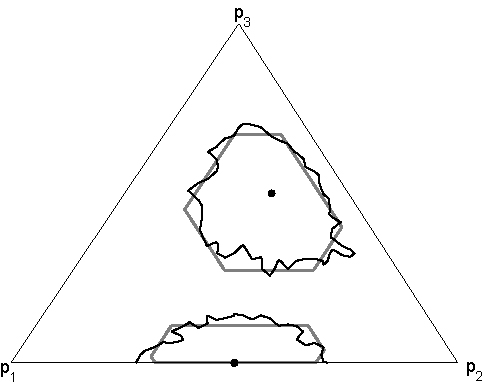

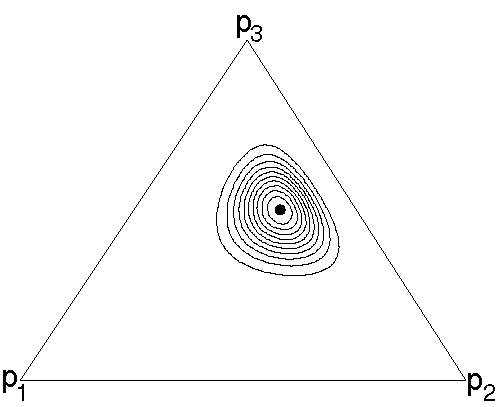

l=1...L). On Figure 8, the contour line contains
all those grid points for which the mle falls within their 95
percentile hull.
Figures 7 and 8 just serve as an
illustration of the frequentist paradigm on D2. A more
efficient way to compute approximate frequentist confidence regions on
the ternary diagram is described by Weltje (2002, p.246). Projecting
the frequentist confidence region onto the axes of the simplex would
not represent that region, but the smallest polygon circumscribing it.
Therefore, it is not possible to accurately "translate" a
frequentist contour plot to error bars on a histogram, which makes it
impossible to easily visualize the frequentist uncertainties of
histograms with more than three bins. The Bayesian credibility regions
discussed next solve this problem.

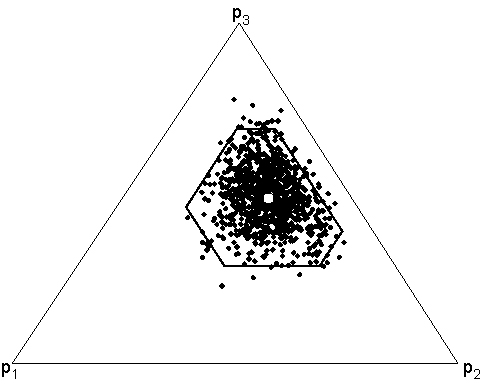

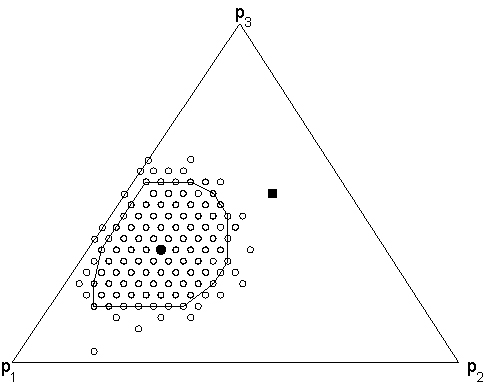

Figure 7:
To test if the trinomial distribution marked by the black dot
(p1=1/2,p2=1/6,p3=1/3) belongs to the 95% confidence region
of the trinomial experiment marked by the black square
(n1=5,n2=10,n3=15), a large number (1000) of trinomial
samples of N=30 numbers was generated from this distribution. They
are represented by the open circles. The black contour line
represents the 95% convex hull. Since the black square does not fall
within this hull, the black dot falls outside the 95% confidence
region of the trinomial experiment.
Figure 8:
The black dots represent the maximum likelihood estimates (mle) for
two trinomial experiments ({n1=5,n2=10,n3=15} and
{n1=15,n2=15,n3=0}). The black contours represent the
frequentist confidence regions, obtained by repeating the experiment
shown in Figure 7 on a 1250 point grid. For each of
the grid points, B=200 trinomial samples were generated. The gray
lines outline the Bayesian credibility regions (using a flat prior).
The agreement between the two methods is surprisingly good.
It is relatively easy to generalize the methodology outlined in
Section 3.2 from a binomial to a multinomial situation.
Recall that the conjugate prior to a binomial distribution is the
b-distribution. The conjugate prior to a multinomial
distribution is the Dirichlet distribution:
Da(p1,...,pM) =
G(
i=M å
i=1
ai)
i=M Õ
i=1
G(ai)
i=M Õ
i=1
piai-1
(9)
The multinomial uniform distribution is a special case of the
Dirichlet distribution with all ai=1. If n is a vector of M
bin counts, then the posterior distribution under such a flat prior is
Dn+1(p1,...,pM). The choice of a prior that is
truely non-informative and invariant under reparameterization is more
controversial for the Dirichlet than it was for the b
distribution. Jeffreys suggested taking ai=1/2, while Perks
recommended using ai=1/M (" i=1...M) (Good, 1965). Similar
to the binomial case (Section 3.2), simultaneous
Bayesian credibility bands for the multinomial distribution are
intervals that cover 100(1-a)% of the area under the posterior
distribution. A few examples of Dirichlet posteriors are shown on
Figure 10. As opposed to the b distribution, there
are no tables of the percentiles of the Dirichlet distribution. In
order to integrate this multi-dimensional function ourselves, we have
to numerically sample from it, as described by Devroye (1986) and in
Appendix B.
Thus, a collection of B "sample
histograms" can be constructed, representing B samples from the
posterior Dirichlet distribution (Figure 11).
All these histograms correspond to points on DM-1.
Asymptotically, independent 100(a/2) and 100(1-a/2) percentiles for the replicates of each of the histogram bin
counts will converge to the independent credibility intervals of
Equation 8. However, it is also possible to
obtain simultaneous credibility bands. The Bayesian way of
doing this is to find M credibility intervals that define a polygon on
DM-1 containing 100(1-a)% of the
posterior distribution (Figures 9 and 11). The algorithm for finding this polygon is
given in Appendix B. Figures 12 and 13 show the effect of different priors on the
posterior distribution and its corresponding credibility polygon.
This Bayesian method yields non-zero credibility intervals, even for
empty bins. It works for histograms but not for kernel density
estimates, which are continuous functions that cannot be easily
represented on a simplex. As histograms traditionally do not take
into account measurement uncertainties, the Bayesian credibility bands
only reflect the uncertainties induced by the counting statistics, and
not those caused by analytical imprecision. A final remark to be made
is that, strictly speaking, the way we have defined simultaneous
Bayesian credibility regions is only exact for categorical
histograms, such as those obtained by point-counting mineral
assemblages. However, if the histogram represents a time series,
which is the case in detrital thermochronology, it will have some
smoothness to it. This effect will not be captured by the Bayesian
credibility regions discussed before. The categorical Bayesian
credibility bands can be overly conservative if applied to such
autocorrelated data. The next section of the paper discusses this
issue.

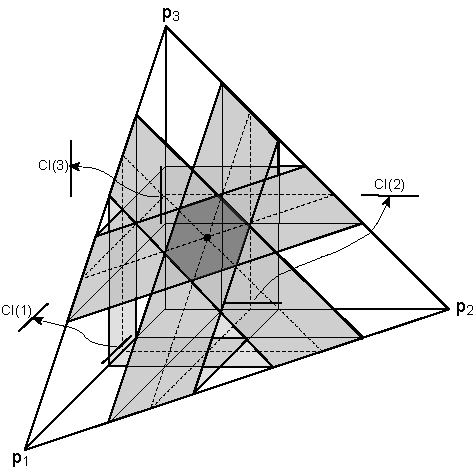

Figure 9:
All possible outcomes of a trinomial experiment, for example a 3-bin
histogram of N measurements xi plot on a 3-simplex. The maximum
likelihood estimate for the multinomial proportions is given by
pmmle=(#xis in mthbin)/N (m=1,2 and 3). The maximum
likelihood etimate (mle) is represented by a black dot. The posterior
distribution of the unknown parameters p1, p2 and p3 is given
by a Dirichlet distribution. To find simultaneous 100(1-a)%
confidence bounds for these parameters, we need to find a polygon on
the simplex that contains 100(1-a)% of the posterior
distribution.
Figure 10:
Analytical contours for different posterior Dirichlet distributions.
The parameters are, from left to right: (1,2,3), (5,10,15) and
(0,0,5). Comparison of the leftmost two figures shows how the
posterior Dirichlet distribution is more tightly constrained when more
data are used. The rightmost plot shows how, even when two bins are
empty, meaningful confidence intervals can be computed.
Figure 11:
The area under posterior distributions such as those in Figure
10 can be numerically integrated. The white dot shows
the maximum likelihood trinomial distribution for a particular sample
(n1=5, n2=10, n3=15). The black dots represent 1000 random
samples from the Dirichlet posterior distribution D6,11,16 on the
3-simplex. The polygon contains 95% of these points. The projection
of this polygon onto the three parameter axes yields the simultaneous
Bayesian credibility intervals.

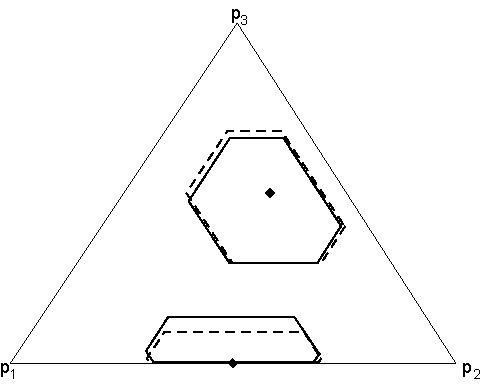

Figure 12:
The black dots on this 3-simplex represent sample bin counts (5,10,15)
and (15,15,0). The solid black polygons represent their respective
simultaneous 95% Bayesian credibility polygons with uniform prior
D1,1,1, while for the dashed polygons, Perks' prior
D[1/3],[1/3],[1/3] was used.

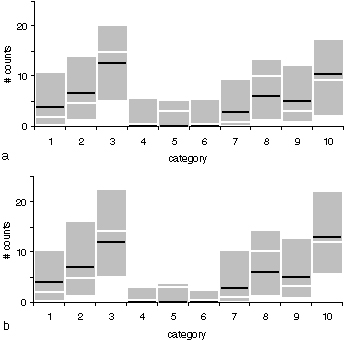

Figure 13:
The white histograms represent a synthetic population of categorical
variables, the black histogram a sample of 50 items from it. Note
that the sample completely missed the 5th population bin. The
gray band covers 95% of the posterior distribution for (a) a flat
(uniform) prior, and (b) Perks' prior. Both credibility bands
correctly contain the original population.
4.3 Bayesian credibility bands for smooth histograms
Strictly speaking, Bayesian credibility bands are only applicable to
non-smooth or categorical data (Section 4.2). In this
section, we will discuss the importance of this problem and a way to
solve it. We can express the roughness r of a time series g(t)
as a function f of its second derivative:
r(g(t)) = f
æ è
ó õ
æ è
d2 g(t)
dt2
ö ø
2
dt
ö ø
(10)
For example, for the discrete case of a histogram with three bins
n=(n1,n2,n3), we could write:
r(n) = (n1-2n2+n3)2
(11)
We now define the smoothness weight w as:
w = e-sr
(12)
where s is the smoothing parameter. Figure
shows the trinomial smoothing weights for
different values of s (for fixed N=n1+n2+n3). The
distribution of the weights can be used to filter the posterior
distribution, thereby in effect serving as a prior distribution
(a "smoothing prior"). The algorithmic details for this procedure
are given in Appendix C.

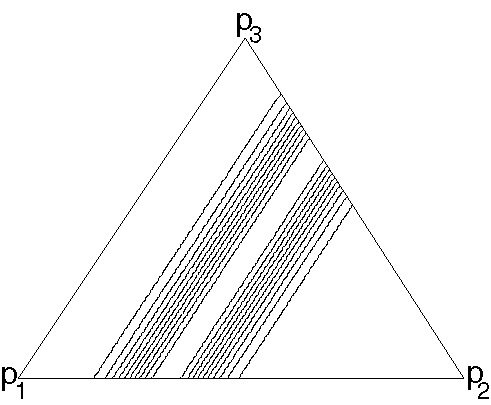

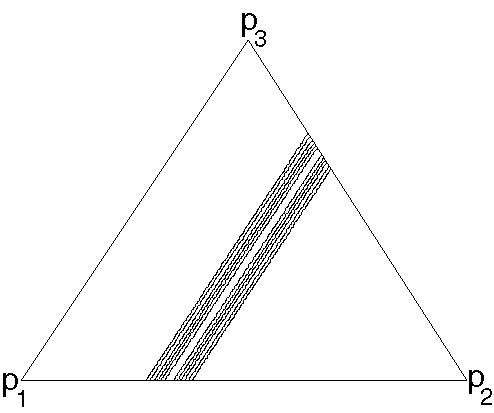

Figure 14:
Contoured smoothing priors for different smoothing parameters, with
N=n1+n2+n3=10. From left to right: s=0 (no smoothing) ,
s=0.1 (weak smoothing), and s=1 (strong smoothing). The strongest
weights are located along the p2=n2/N=1/3 line, which connects
all possible histograms with zero second derivative.

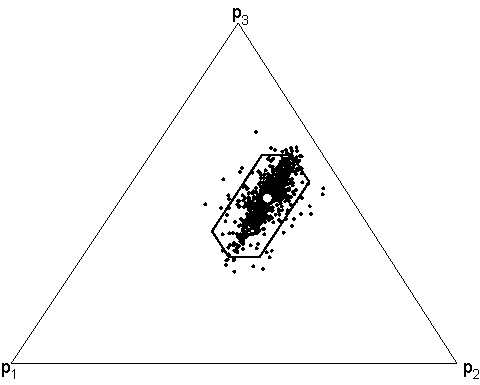

Figure 15: Smoothed version of Figure 11, using
s=0.1
Figure 15 shows the results of this kind of
posterior filtering for a trinomial distribution on D2. A
logical extension of this method from three to M bins would be to
replace Equation 11 by:
r(n) =
M-1 å
m=2
(nm-1 - 2nm + nm+1)2
(13)
By generating samples from the posterior distribution, and accepting
or rejecting them based on the smoothing weights given by Equations
12 and 13, B samples from
the smoothed posterior could be obtained. However, the amount of
computation time that would be required for this process increases
exponentially with M. The "sliding window" approach explained next
does a similar job in linear time. The roughness penalty embodied by
Equation 12 depends on the second derivative only.
This means that we only consider the influence of immediately adjacent
bins on each other. For example, the mth bin is directly
correlated with the (m-1)th bin and the (m+1)th bin, but not
with the (m-2)th bin and the (m+2)th bin. This warrants the

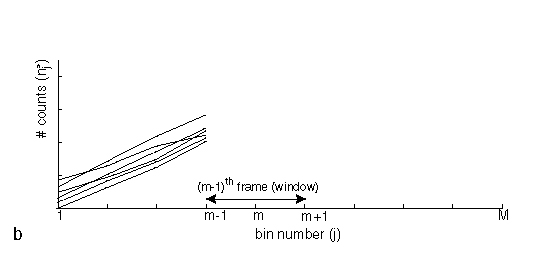

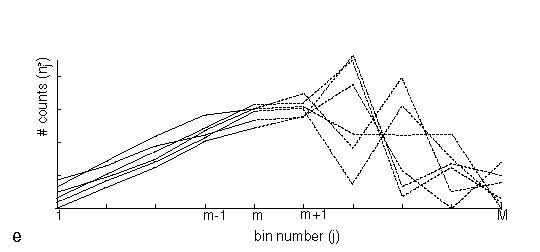

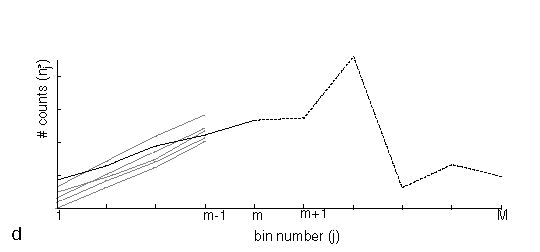

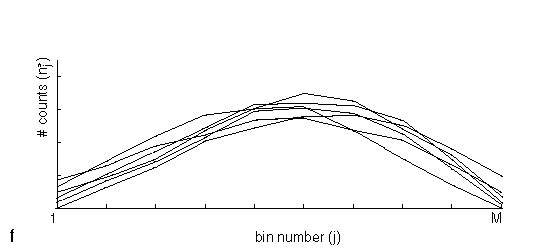

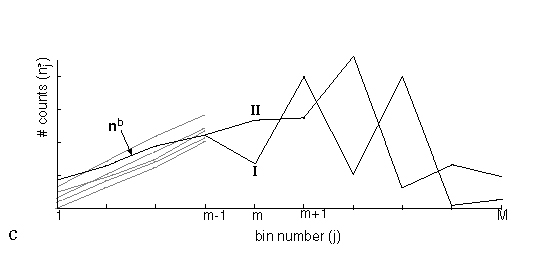

use of a three bin wide "sliding window", that recursively smooths
the posterior distribution from the left to the right (or vice versa)
one bin at a time. The details of this method are given in Appendix
C.
Figures 16 and
17 illustrate the results of the sliding
window procedure on a synthetic dataset. These figures demonstrate
how using a smoothing prior filters out the roughest "spikes" from the
posterior sample set. It is such often small minority of outliers that
makes the unsmoothed, categorical confidence bands of Section 4.3 too wide, meaning too conservative,
for continuous histograms. An example of the sliding window approach
on real data is deferred to Section , where we will also discuss which
values for the smoothing parameter s to choose, and why the rather
ad hoc nature of the smoothing method discussed in this section
is probably not a big issue after all.

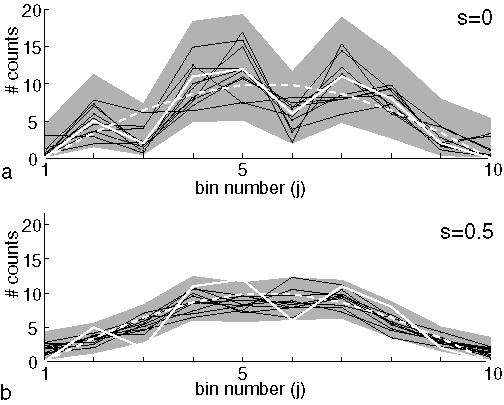

Figure 16:
The dashed white lines show the histograms -or rather frequency
polygons (Scott, 1992)- of a smooth population (sine function). The
solid white lines show the frequency polygons of a sample of 57
numbers that were randomly drawn from this population. The gray areas
mark the simultaneous 95% credibility bands, obtained by the Bayesian
method and based on 500 samples from the posterior distribution. 10
of these samples are shown in black to illustrate the effect of the
smoothing prior. The non-smoothed Bayesian credibility band (a) is
about twice as wide as the smoothed credibility band (b).

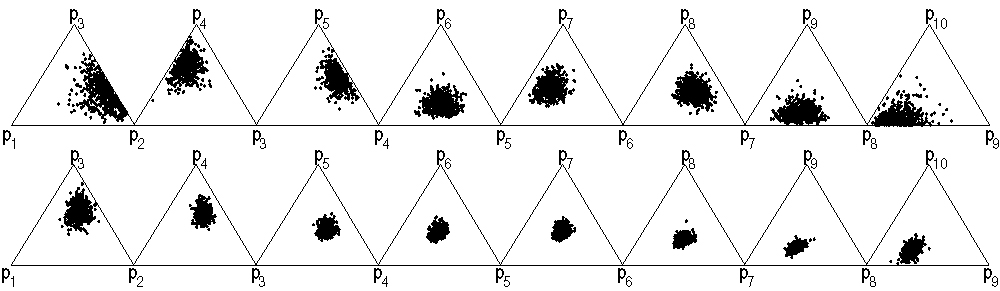

Figure 17: Trinomial "slices" through the unsmoothed (top) and smoothed
(bottom) posteriors of Figure 16.
We first return to the example previously
discussed in Section 2.1 and
illustrated by Figure 1. Figure 18 shows the simultaneous 95% Bayesian
credibility regions for samples A-D on the ternary QFL diagram in
their now familiar polygonal form. The difference between the
credibility regions of samples A and B clearly stands out. Recall that
400 points were counted for sample B, as opposed to only 200 for
sample A. As a result, the uncertainty polygon of A is substantially
larger than that of B. It is quite possible that A and B were sampled
from the same distribution. Whereas it very unlikely that sample B
could have been derived from the population outlined by the contour,
this conclusion cannot be made for sample A. A similar situation
exists for sample C. This sample plots into the "transitional arc"
field of the QFL diagram, but its 95% uncertainty region partly falls
inside the "undissected arc" and "recycled orogen" fields. Although
we have not done so, it would even be possible to compute the
respective probabilities for the three fields, by counting the number
of numerical Bayesian replicates that fall into them. Finally, sample
D contains only one percent (4/400) of quartz. Its uncertainty
hexagon is highly asymmetric but falls entirely inside the simplex, as
it should.
Figure 18: The QFL diagram of Figure 1, with
95% credibility regions for samples A-D. The hexagon of sample A
(200 point-counts) is markedly larger than that of sample B (400
point-counts). Sample C most likely falls inside the "transitional
arc" field, but there is more than 5% likelihood that it belongs to
either the "undissected arc" or "recycled orogen" field.
We now proceed to the multinomial example
of heavy mineral analyses by Faupl et al. (2002). Figure 19 shows the 95% credibility intervals for the
eight heavy mineral proportions, using Jeffreys' prior. When 200
grains are counted, the percentage-error is between 2 (staurolite in
ga-229/1) and 20% (garnet in io-234/1) (Figure 19.a). There is less than 5% probability that
the heavy mineral distribution of sample io-234/1 is compatible with
that of sample ga-229/1 because the observed apatite and garnet
fractions of io-234/1 fall outside the simultaneous 95% credibility
band of ga-229/1. Likewise, it is less than 5% likely that sample
ga-229/1 is compatible with io-234/1 because the apatite and garnet
fractions of the former fall outside the confidence bands of the
latter. The statement that ga-229/1 and io-234/1 are mutually
compatible is true with less than 2.5%, and not 5% probability,
because it involves two simultaneous tests. This is a consequence of
the so-called Bonferroni inequality (Rice, 1995). The Bonferroni rule
is on the conservative side, especially considering the fact that the
two tests are not entirely independent from each other. Figure 19.b shows that if the percentages reported by
Faupl et al. had been the result of counting 1000 instead of
200 grains, the percentage-errors would have been between 0.5 and 9%.

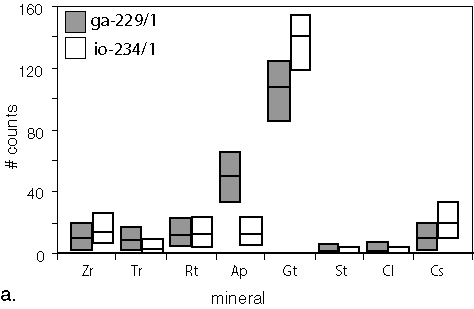

Figure 19: The heavy mineral analyses of Figure 2,
with their 95% credibility intervals, using Jeffreys' prior, (a) for
the 200 counts of Faupl et al. (2002), and (b) if the same
proportions had been obtained by counting 1000 grains. See Figure
2 for the key to the mineral abbreviations.
We first consider a dataset of 157
concordant U-Pb SHRIMP ages on detrital zircon from the Cambrian
Nubian Sandstone of southern Israel (Avigad et al., 2003). The
vast majority of these grains are of Pan-African age (900-540Ma), and
likely derived from the Arabian-Nubian shield but there are some older
grains as well, which could have come from as far as Central Africa
(Avigad et al., 2003). Figure 20
shows the kernel density plot of this dataset and its grain-age
histogram with 95% credibility band. This plot contains an optimal
amount of information: the kernel density estimate shows the sample
taking into account measurement uncertainties, while the histogram
represents the estimated population and the uncertainties caused by
counting statistics. The credibility band also allows a better
assessment of the likelihood that empty bins actually correspond to
missing age-fractions, and of the statistical significance of some of
the minor pre Pan-African peaks. The Nubian Sandstone example does
not follow a very smooth distribution. Therefore, it might not be
necessary to apply any smoothing to it at all.

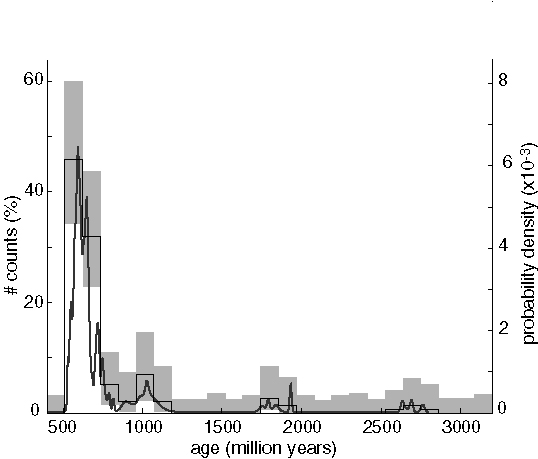

Figure 20: Detrital grain-age histogram and kernel density
function for 157 SHRIMP U-Pb zircon ages from the Cambrian Nubian
Sandstone of southern Israel from Avigad et al. (2003). The 95%
credibility band for the histogram was calculated using Jeffreys'
prior. We are more than 95% certain that each of the empty histogram
bins contains less than roughly 5% of the population.
This is certainly not the case
for another dataset, containing the ages of 155 lunar spherules, dated
with the 40Ar/39Ar method, and published by
Culler et al. (2000). Figure 21.a
shows the simultaneous 95% credibility band of this age-histogram
without smoothing (s=0), whereas for Figure 21.b, a smoothing prior with s=0.25 was used.
The resulting credibility band is significantly narrower. To study
the effect of the smooting parameter s on the credibility band, the
experiment of Figure 21 was repeated for a
range of s-values and the average width of the credibility band was
calculated for each of them. Figure 22 shows
how a moderate amount of smoothing can reduce the width of the
credibility band by a factor of two, but that smoothing even more does
not have much effect. This is because the exaggerated width of the
unsmoothed credibility bands is mostly caused by just a few anomalous
spikes (see Figure 16.a). The sharpest
of these excursions have the greatest effect on the width of the
credibility bands, and will be filtered out the easiest. Smoothing
out posterior samples that are less rough takes a lot more effort
while having a much smaller effect. The fact that the magnitude of
the smoothing parameter is not all that important reassures us that
the rather arbitrary nature of the smooting prior as defined by
Equations 10 and 12 is not a problem.

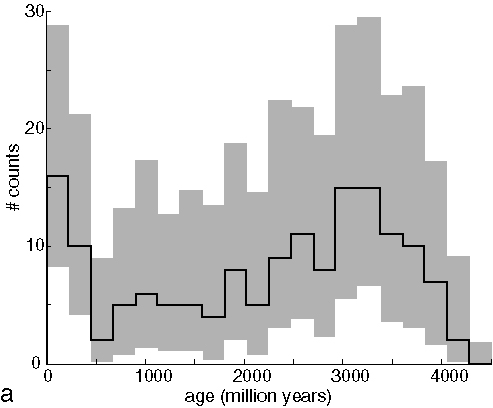

Figure 21: These histograms show the ages of 155 lunar spherules -
droplets of molten rock that result from meteorite impacts - measured
with the 40Ar/39Ar method (Culler et al., 2000).
These spherules record a time series of impact activity on the Moon's
surface, which should be a more or less smooth function. The 95%
credibility band of histogram (a) was calculated without a smoothing
prior (s=0). For histogram (b), a moderately strong smoothing prior
(s=0.25) was used, resulting in a much narrower credibility band.

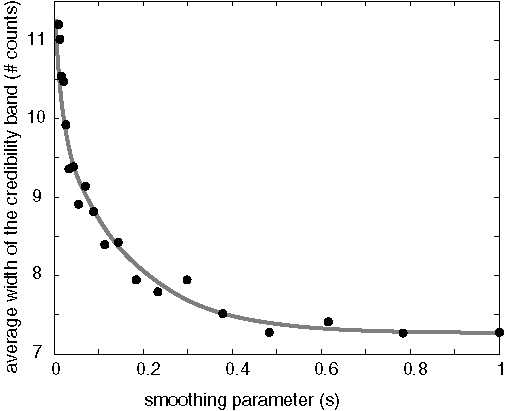

Figure 22: The exercise shown in Figure 21 was repeated for a range of s-values. This
graph shows the evolution of the average credibility band width with
s, suggesting that it is not necessary to use very strong
smoothing.
DeGraaff-Surpless et al. (2003) presented a statistical
analysis of the detrital U-Pb zircon age datasets shown in Figure 3. Using the Kolmogorov-Smirnov (K-S) test,
they compared the different samples to see if they could have been
derived from the same population. The conclusion was that samples KD3
and KD7 were compatible with each other on the 95% confidence level,
but that sample KD26 was not. The same test can be done using
Bayesian credibility bands, as shown on Figure 23 . No smoothing prior was used for the
construction of Figure 23 because it is not
our goal to constrain the distribution of the underlying population,
but only to see if the different observations are compatible with each
other. As soon as any part of one histogram falls outside the 95%
credibility band of the other, the former is not compatible with the
latter. However, as discussed in the previous section, in order to
test if two samples are mutually compatible, we must construct two
97.5% credibility bands. If each of the two histograms completely
falls inside the 97.5% credibility band of the other, there is at
least 5% chance that they are compatible with each other. In addition
to the K-S test and the Bayesian credibility bands, the c2-test is a third statistical method
that was used to test the compatibility of the three samples. Its
results are also shown on Figure 23. The
three methods yield the same conclusions: samples KD3 and KD7 are
compatible with each other, while KD26 is not. As a word of caution,
we should repeat the remark made in Section 2.1. Provided the number of measurements
is large enough, eventually any test will fail, no matter how small
the difference between the distributions. Instead of blindly looking
whether or not a test has failed, it is better to consider the
relative variation of the p-values, ensuring that samples of roughly
the same size are compared, or to use a different measure of
"distance" between distributions (e.g. Sircombe and Hazelton,
2004).
Figure 23:
Three samples of DeGraaff-Surpless et al. (2003) are compared
with each other. Since the histograms of samples KD3 and KD7 fall
completely within each other's 97.5% credibility bands (using
Jeffreys' prior), the two histograms are statistically "compatible"
on the 95% confidence level. Parts of sample KD26 fall outside the
97.5% credibility bands of samples KD3 and KD7, and vice versa.
Therefore, a statistically significant difference exists between
sample KD26 and the other two samples. The same conclusions were
reached by doing a Kolmogorov-Smirnov test (DeGraaff-Surpless et
al., 2003) and a c2-test. The p-values of the latter are also
shown on the figure.
Finally, we return to the histogram of
dip angles of 33 reverse faults from Collettini and Sibson (2001).
Figure 24 shows the simultaneous 95%
credibility band for this histogram. For Figure 24.a, no smoothing prior was used (s=0), while
for Figure 24.b, the smooting parameter was
s=1. In either case, it is easy to find a monomodal histogram that
integrates to 33, while completely fitting within the credibility
band. This means that the apparent bimodality is not statistically
significant on a 95% confidence level. Since the author is not a
structural geologist, he cannot assess if such bimodality is an
expected feature. If so, a bimodal prior distribution could be used
instead of a uniform one. In that case, it is possible that the
bimodality is statistically significant. However, without such prior
information, it is not.
Figure 24:
The dashed gray line shows the dataset of Figure
4, the gray shaded area simultaneous 95%
credibility bands computed (a) without smooting, and (b) using a
smooting prior with smooting parameter s=1. In either case, the
apparent bimodality observed in Figure 4 turns
out not to be statistically significant because it is easy to fit a
monomodal histogram (black line) inside the credibility band. Prior
information or more data are needed to prove bimodality.
In the Earth Sciences, it is often not the data itself, but an
estimate of its probability distribution (density) that is
interpreted. This paper addressed the problem of how to quantify the
statistical uncertainty on such interpretations. The histogram is one
of the most convenient ways to represent data like petrographic
point-counts. We showed how to construct simultaneous Bayesian
credibility bands for such categorical histograms. When only three
categorical variables are studied, the ternary diagram is an
alternative method of visualization, to which the method developed in
this paper is equally applicable. Credibility bands allow an
assessment of the precision of point-counting results and a way to
intercompare multiple samples. Histograms can also be used to
estimate probability densities of continous variables, such as
radiometric ages in detrital thermochronology. The main alternative
to the histogram for this purpose is the kernel density estimator.
The advantages of the latter to the former are that (1) kernel density
estimates yield continuous, rather than stepwise functions and (2)
they explicitly take into account measurement uncertainties, whereas
histograms do not. On the other hand, histograms have the substantial
advantage that it is possible to compute confidence bands for them, as
described in this paper. This is far less obvious for kernel density
estimates. When analytical uncertainties exist, it is good practice
to use kernel density estimates in conjunction with histograms,
including their credibility bands.
Credibility bands provide a measure of the influence of counting
statistics on density estimates. They also allow a better judgement
of the possible similarities between different populations. If
measurement uncertainties are small, the histogram is a good estimator
of probability density, for which exact Bayesian credibility bands can
be calculated. These have non-zero width even over intervals that
were not sampled. This is important in disciplines such as detrital
thermochronology, where not just the presence, but also the
absence of certain (age) components is important. The degree of
confidence that certain age intervals are absent in a detrital
population can be calculated analytically (Vermeesch, 2004). For
example, if 100 sediment grains are counted, there is up to 11%
chance that at least one fraction ³ 0.05 of the population was
missed by that sample. (Bayesian) credibility bands such as those on
Figure 20 are an alternative way to express this kind of
uncertainty. Continuous histograms often represent time series, which
are autocorrelated to some degree. In such cases, adjacent bins are
not independent from each other, as was the case for categorical
histograms. The Bayesian way to deal with this problem is to use an
ad hoc smoothing prior, which can be completely determined by a
single smooting parameter. Smoothing helps to better constrain the
probability distribution that underlies the data. Smooting is not
necessary if we merely want to see which other experimental outcomes
are compatible with the observations.
This paper comes with a computer program named EPDU (an Estimator of Probability Density and its
Uncertainties) that runs on both PC and Macintosh
computers. This program is available online at
http://pangea.stanford.edu/research/noble/epdu.
Appendix A
To generate a large number B of synthetic samples from a multinomial
distribution p = (p1,... ,pM | åm=1Mpm = 1), we
use a "bars and stars" procedure:
Generate the following vector of M+1 numbers: A =
(0 , (p1) , (p1+p2), ... , (åm=1Mpm = 1)).
This represents the edges ("bars") of a histogram. The gaps between
subsequent entries in this array represent the multinomial
probabilities (p1,...,pM).
Create a matrix B of size B×N with random
numbers between 0 and 1, drawn from a uniform distribution. This
represents B synthetic samples of N values ("stars").
For each row of B, count the number of "stars" that
fall in between the "bars" of A. This procedure yields a
matrix H of size B×M with multinomial replications of
p.
Appendix B
The following procedure produces a random sample from a Dirichlet
distribution Da: generate a vector x =
(x1,...,xm,...,xM) by drawing each of the xms from a gamma
distribution with shape parameter am. Then Q =
(q1,...,qm,...,qM) with
qm=xm/åm=1Mxm has the desired Dirichlet
distribution (Devroye, 1986). Alternatively, it is also possible to
obtain a sample of the posterior distribution using a procedure named
the Bayesian bootstrap (Rubin, 1981).
To numerically integrate the Dirichlet distribution, we use either the
"traditional method" of Devroye (1986), or the Bayesian bootstrap.
Both methods give the same results. Thus, we generate a B×M
matrix H containing B random samples from the Dirichlet
posterior of interest, each representing a histogram of M bins. The
following procedure finds a polygon on DM-1, containing
100(1-a)% of the posterior distribution:
construct a two-sided 100(1-g)% credibility interval for
each of the columns ("bins") of this matrix. This can be done
either analytically with Equation 8, or numerically by
computing the 100(a/2) and 100(1-a/2) percentiles. This
yields M independent credibility intervals.
For each column, accept those values (rows) that fall within its
respective credibility interval and reject those rows that fall
outside of it. Divide the number of rejected rows by B (the total
number of rows), and call this fraction r. If
d = r-a > 0, repeat step #1 for a larger g. If
d < 0, repeat it for a smaller g.
Stop the iteration if d is small enough (e.g., < 0.001).
The independent 100(1-g)% credibility intervals for each of
the bins then correspond to simultaneous 100(1-a)% credibility
bands for the entire histogram.
Appendix C
First, we will explain how to smooth a Dirichlet posterior on
D2:
Generate a random Bayesian replicate
nb=(nb1,nb2,nb3) from the unsmoothed
Dirichlet posterior as in Devroye [1986] or Appendix B.
Calculate the roughness r of this sample with Equation
11 and the smoothness weight w with Equation
12. The latter is a number between zero (infinite
roughness) and one (zero roughness).
Generate a random number between zero and one. If this number is
greater than w, reject nb. If it is less than w, accept
nb.
Repeat steps 1-3 for b=1...B until a large number B (e.g., 500)
of samples from the posterior distribution have been accepted.
Next, we describe the method for
extending this method to histograms of more than three bins, using a
"sliding window" approach. Figure 25.a shows
B Bayesian replicates from an unsmoothed posterior distribution. On
this figure, the dashed line shows the observed bin counts n =
(n1,...,nM) in the form of a frequency
polygon (Scott, 1992). The solid lines show B multinomial
replicates from the Dirichlet posterior: nb =
(nb1,...,nbM), with 1
£ b £ B. In
this example B=7, but in real applications a more typical value would
be B > 500. Assume that the first m-1 bins have already been
smoothed (Figure 25.b). Figures 25.c and d then show
how to find the bth replicate for the next bin. We
generate an array nb =
(nb1,...,nbM), where
(nb1,...,nbm-1) are "inherited" from the previous
smoothing steps and
(nbm,...,nbM) are
generated at random from M-m+1 gamma distributions with parameters
(nm,...,nM) respectively. Dividing
nb by åj=1Mnjb yields a sample
pb from the Dirichlet posterior (åj=1Mpjb=1)
[Devroye, 1986]. Multiplying pb by N=åj=1Mnj gives a
Bayesian replication of the original histogram n. We now only
consider one "trinomial frame" of this Bayesian replicate
(nbm-1,nbm,nbm+1) and
calculate its roughness and the corresponding smoothness weight with
Equation 12. Using the same decision
rule as before, we either accept or reject the mth bin.
Two examples of such "multinomial extensions" to the bth
Bayesian replicate are shown on Figure 25.c, labeled I and II. The
latter candidate will have a much greater chance of being accepted
than the former.
After repeating this procedure B times,
we obtain a set of B multinomial extensions to the previously smoothed
set of samples from the Dirichlet posterior (Figure 25.e). We discard the replicates from the
(m+1)th bin onward and just keep the values for the
mth bin. The procedure then recursively smooths the
remaining bins one by one, in exactly the same way as described
before. However, at the (M-1)th frame, we have to accept
not only the (m-1)th, but also the mth bin, in
order to end the recursive process. Likewise, to start the recursive
process, we must accept both the first and the second bin of the first
trinomial "frame" during the first step of the smoothing procedure.
To avoid any edge effects, we "pad" the vector n of
observed bin counts with zeros. This is more than just a trick,
because it is an explicit assumption of the histogram that the number
of observations outside its support is zero.
At the end of the smoothing procedure,
the set of posterior samples looks like Figure 25.f. The smoothed replicates are "more
parallel" than the unsmoothed ones shown in Figure 25.a. Thus, it becomes clear why the width of
the smoothed credibility band is smaller than that of its unsmoothed
counterpart, as illustrated by an example of the stepwise smoothing
procedure on synthetic data shown in Figures 16 and 17.
Figure 25: Illustration of the "sliding window" approach to smoothing
the posterior distribution. (a) The solid black lines represent B=7
Bayesian replicates generated without smooting (s=0). The dashed line
marks the frequency polygon of the true population. (b) Suppose that
the first (m-1) bins have already been smoothed, then B smoothed
replicates for the mth step can be generated as follows: (c) to
get the first replicate, first try the multinomial extension I and
randomly accept or reject it based on its smoothness weight (Equation
12). Since replicate I is quite rough at the
mth bin, it is very likely to be rejected. If this is the case,
generate a new replicate. (d) Replicate II happens to be much
smoother at the mth bin, giving it a greater chance of being
accepted. If accepted, discard the replicates from (m+1) onwards.
(e) Repeat steps (c) and (d) until B values for the mth value
have been accepted. (f) Repeat steps (c)-(e) until all M bins have
been filled.
Acknowledgements
The author wishes to thank Albert Tarantola and especially Susan
Holmes for introducing him to Bayesian statistics. However, these
people are not responsible for any inaccuracies or errors that may
exist in the paper.
References.
Avigad, D., Kolodner, K., McWilliams, M., Persing, H., and
Weissbrod, T., 2003, Provenance of northern Gondwana Cambrian
sandstone revealed by detrital zircon SHRIMP dating.: Geology, v. 31,
no. 3, p. 227-230.
Bayes, F. R. S., 1763, An essay towards solving a problem in the
doctrine of chances: Philosophical Transactions, v. 53, p. 370-418.
Blyth, C. R., 1986, Approximate binomial confidence limits:
Journal of the American Statistical Association, v. 81, no. 395,
p. 843-855.
Clopper, C. J., and Pearson, E. S., 1934, The use of confidence
or fiducial limits illustrated in the case of the binomial:
Biometrika, v. 26, no. 4, p. 404-413.
Collettini, C., and Sibson, R. H., 2001, Normal faults, normal
friction?: Geology, v. 29, no. 10, p. 927-930.
Culler, T. S., Becker, T. A., Muller, R. A., and Renne, P. R.,
2000, Lunar impact history from 40Ar/39Ar dating of glass
spherules: Science, v. 287, no. 5459, p. 1785-1788.
DeGraaff-Surpless, K., Mahoney, J. B., Wooden, J. L., and
McWilliams, M. O., 2003, Lithofacies control in detrital zircon
provenance studies; insights from the Cretaceous Methow Basin,
southern Canadian Cordillera: Geological Society of America Bulletin,
v. 115, no. 8, p. 899-915.
Devroye, L., 1986, Non-uniform random variate generation: New York,
Springer-Verlag, 843 p.
Dickinson, W. R., Beard, L. S., Brakenridge, G. R., Erjavec,
J. L., Ferguson, R. C., Inman, K. F., Knepp, R. A., Lindberg, F. A.,
and Ryberg, P. T., 1983, Provenance of North American Phanerozoic
sandstones in relation to tectonic setting: Geological Society of
America Bulletin, v. 94, no. 2, p. 222-235.
Dickinson, W. R., 1985, Interpreting provenance relations from
detrital modes of sandstones, in: Zuffa, G.G. (Ed.), Provenance of
Arenites, ed., NATO ASI Series, Series C: Mathematical and Physical
Sciences: Reidel, Dordrecht, v. 148, p. 333-361.
Faupl, P., Pavlopoulos, A., and Migiros, G., 2002, Provenance of
the Peloponnese (Greece) flysch based on heavy minerals: Geological
Magazine, v. 139, no. 5, p. 513-524.
Gill, J., 2002, Bayesian methods : a social and behavioral
sciences approach: Boca Raton, FL, Chapman and Hall, 459 p.
Good, J. I., 1965, The estimation of probabilities: an essay on
modern Bayesian methods: Cambridge, Massachusetts, MIT Press, 109 p.
Jeffreys, H., 1946, An invariant form for the prior probability
in estimation problems: Proceedings of the Royal Society of London A,
v. 186, no. 1007, p. 453-461.
Rice, J. A., 1995, Mathematical statistics and data analysis:
Belmont, CA, Duxbury Press, 602p.
Rubin, D. B., 1981, The Bayesian Bootstrap: Annals of
Statistics, v. 9, no. 1, p. 130-134.
Scott, D. W., 1992, Multivariate density estimation: theory,
practice, and visualization, Wiley series in probability and
mathematical statistics: New York, Wiley, 317 p.
Silverman, B. W., 1986, Density estimation for statistics and
data analysis, Monographs on statistics and applied probability:
London ; New York, Chapman and Hall, 175 p.
Sircombe, K. N., and Hazelton, M. L., 2004, Comparison of
detrital age distributions by kernel functional estimation:
Sedimentary Geology, v. 171, p. 91-111.
Van der Plas, L., and Tobi, A. C., 1965, A chart for judging the
reliability of point counting results: American Journal of Science,
v. 263, no. 1, p. 87-90.
Vermeesch, P., 2004, How many grains are needed for a provenance
study? Earth and Planetary Science Letters, v. 224, no. 3-4,
p. 441-451.
Weltje, G. J., 2002, Quantitative analysis of detrital modes;
statistically rigorous confidence regions in ternary diagrams and
their use in sedimentary petrology: Earth-Science Reviews, v. 57,
no. 3-4, p. 211-253.
Yue, Y., Ritts, B. D., and Graham, S. A., 2001, Initiation and
long-term slip history of the Altyn Tagh Fault: International Geology
Review, v. 43, no. 12, p. 1087-1093.
File translated from
TEX
by
TTH,
version 3.64. On 24 Nov 2004, 11:07.
